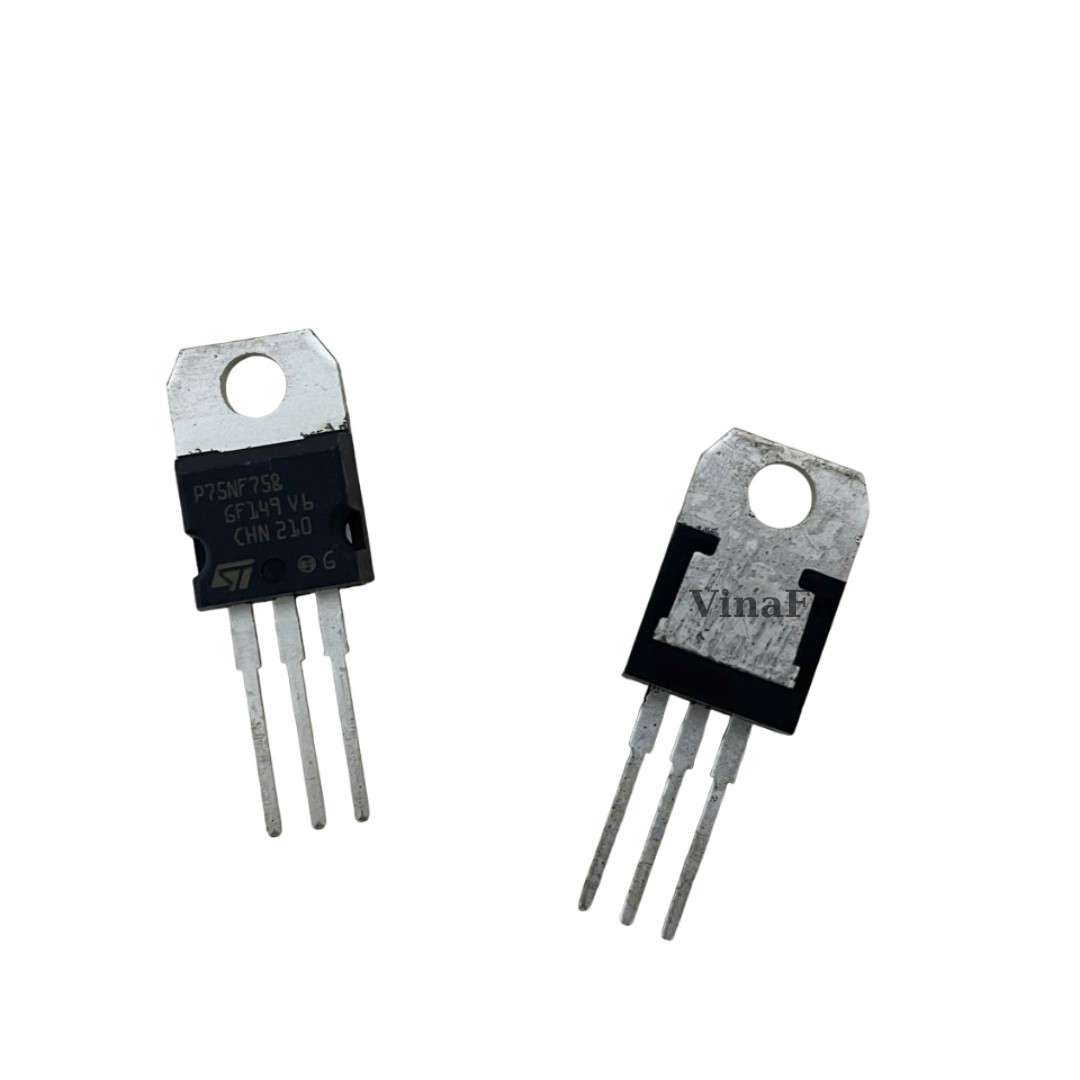

Manufacturer: |
STMicroelectronics |
Product Category: |
MOSFET |
Technology: |
Si |
Mounting Style: |
Through Hole |
Package / Case: |
TO-220-3 |
Number of Channels: |
1 Channel |
Transistor Polarity: |
N-Channel |
Vds - Drain-Source Breakdown Voltage: |
75 V |
Id - Continuous Drain Current: |
80 A |
Rds On - Drain-Source Resistance: |
9.5 mOhms |
Vgs - Gate-Source Voltage: |
20 V |
Maximum Operating Temperature: |
+ 175 C |
Packaging: |
Tube |
Channel Mode: |
Enhancement |
Brand: |
STMicroelectronics |
Configuration: |
Single |
Fall Time: |
30 ns |
Forward Transconductance - Min: |
20 S |
Height: |
9.15 mm |
Length: |
10.4 mm |
Minimum Operating Temperature: |
- 55 C |
Pd - Power Dissipation: |
300 W |
Rise Time: |
100 ns |
Series: |
N-channel STripFET |
Factory Pack Quantity: |
50 |
Transistor Type: |
1 N-Channel |
Type: |
MOSFET |
Typical Turn-Off Delay Time: |
66 ns |
Typical Turn-On Delay Time: |
25 ns |
Width: |
4.6 mm |
Unit Weight: |
0.050717 oz |
